Belt Drive (GRN/2G)

Description

Belt Drive (GRN/2G)

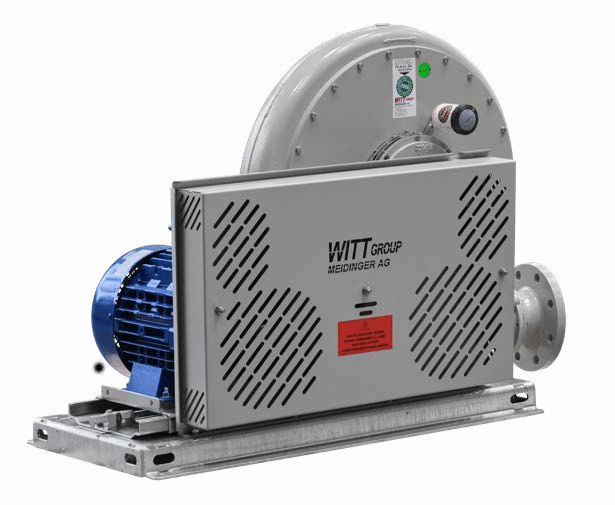

Safe and Reliable Belt Drive

With belt-driven GRN fans, a wide range of operating points can be achieved even without a VFD.

Various belt ratios allow the impeller speed and thus the characteristic curve to be adjusted.

With a maximum speed of 5800 rpm, a pressure of up to 160 mbar is achieved.

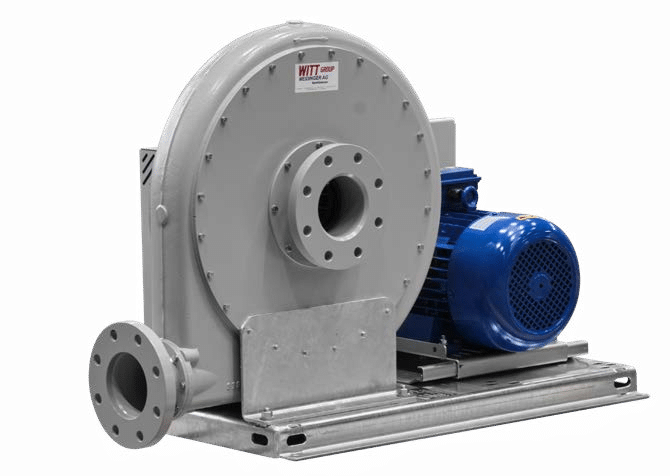

Example Fan Type: EX-S-GRN48/120/500/2G

• Impeller mounted on flanged bearing
• Standard flange size DN125 PN10 (others on request)
• Flow rate up to 1500 m3/h
• Pressure up to 140-160 mbar (depending on the flow rate)
• Motor power from 2.2 kW up to 11 kW (400V/50Hz)
• Belt drive
• Housing material GGG40 / Impeller from aluminum
• ATEX II2G or II3G (for zone 1 and 2)
• Gastight ISO EN 13349 cat. H1
• Standard colour RAL 7032 (others on request)

Belt Drive – Double Stage (GRN/2G-2)

With two fans connected in series and mounted on a common base frame, the pressure can be doubled. This allows the maximum permissible pressure of 300 mbar to be reached.

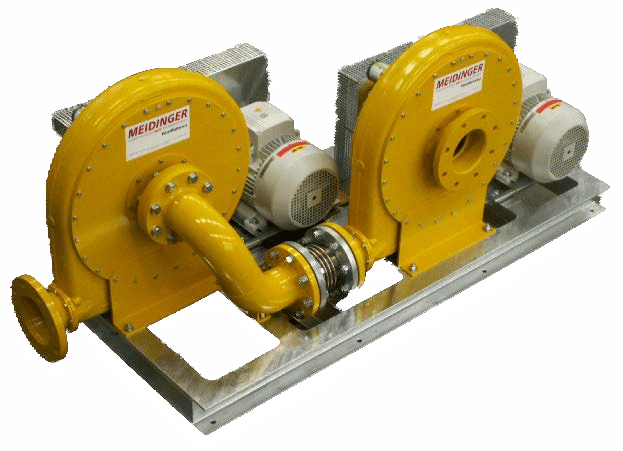

Example Fan Type: EX-S-GRN48/120/500/2G-2

• Impeller mounted on flanged bearing
• Standard flange size DN125 PN10 (others on request)
• Flow rate up to 1500 m3/h / Pressure up to 300 mbar
• Motor power from 2 x 2.2 kW up to 2 x 11 kW (400V/50Hz)
• Belt drive
• Housing material GGG40 Impeller from aluminum
• ATEX II2G or II3G (for zone 1 and 2)
• Gastight ISO EN 13349 cat. H1
• Standard colour RAL 7032 (others on request)

For more information, please visit our website or read our brochure.
