HA Types Series

Description

HA Types Series

(HA/1G & HA/1G-2)

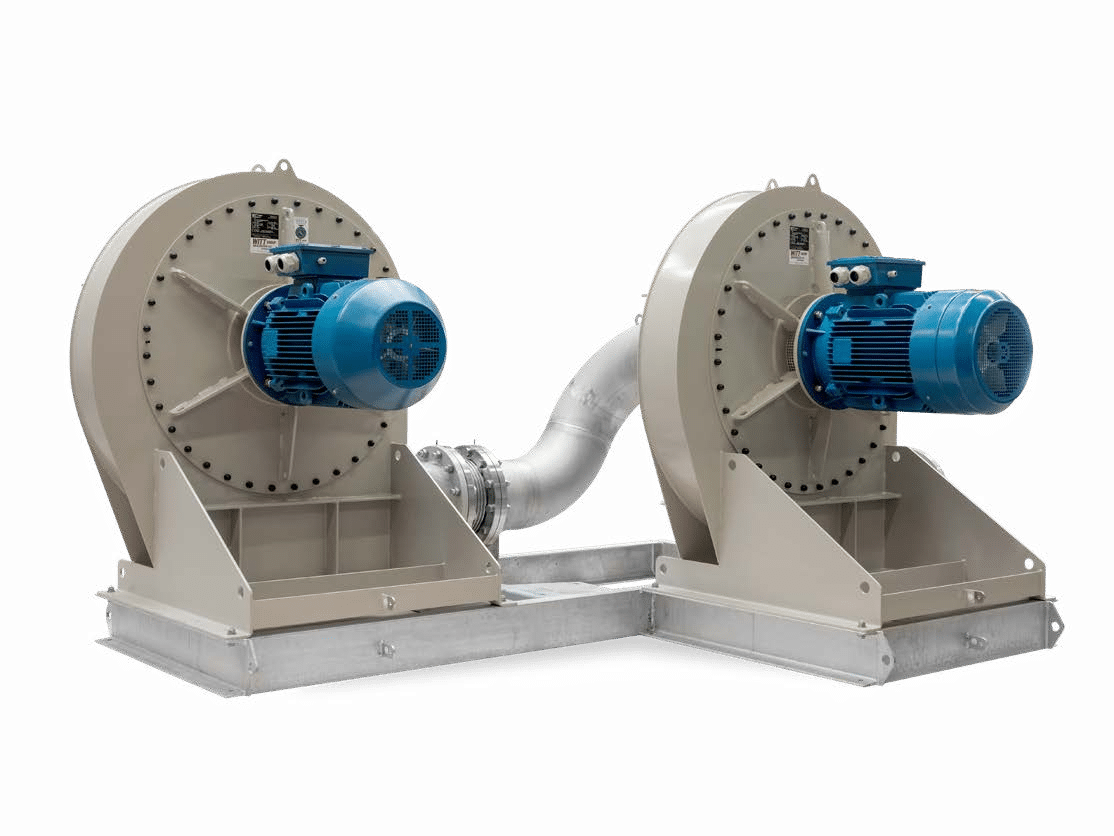

In order to meet our customers’ growing demand in volume flow, the HA series significantly expands our product range. This enables us to cover flow rates to more than 8000 m³/h. Pressures of up to 200 mbar are reached. As double stage with two fans in series up to 300 mbar.

Of course, the proven advantages remain. You benefit from the flat characteristic curve, which is characterized by constant pressure at different flow rates. This simplifies integration into your system and often eliminates the need for complicated control technology and safety measures such as pressure relief valves.

Technical Information

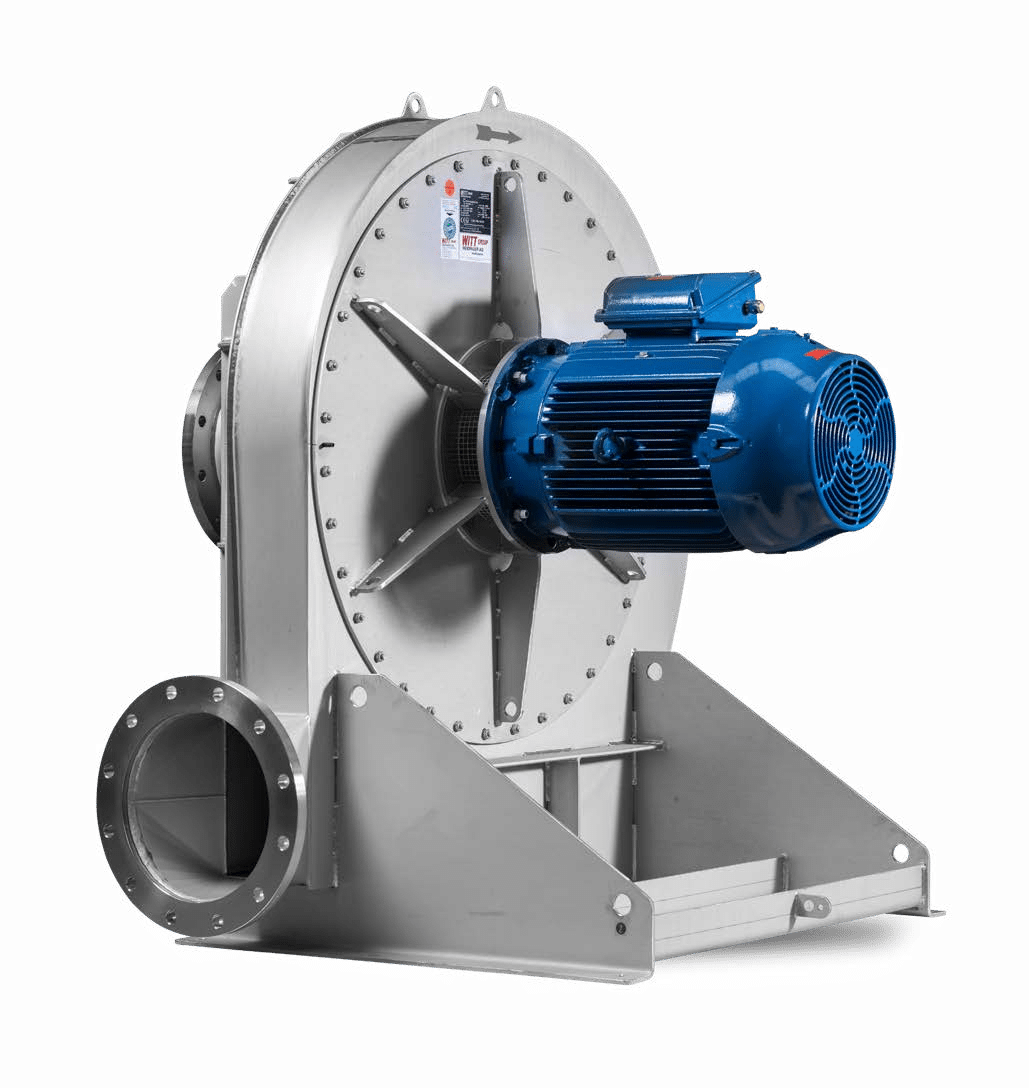

• Direct drive: Impeller direct mounted on motor shaft (Compact and low-maintenance)

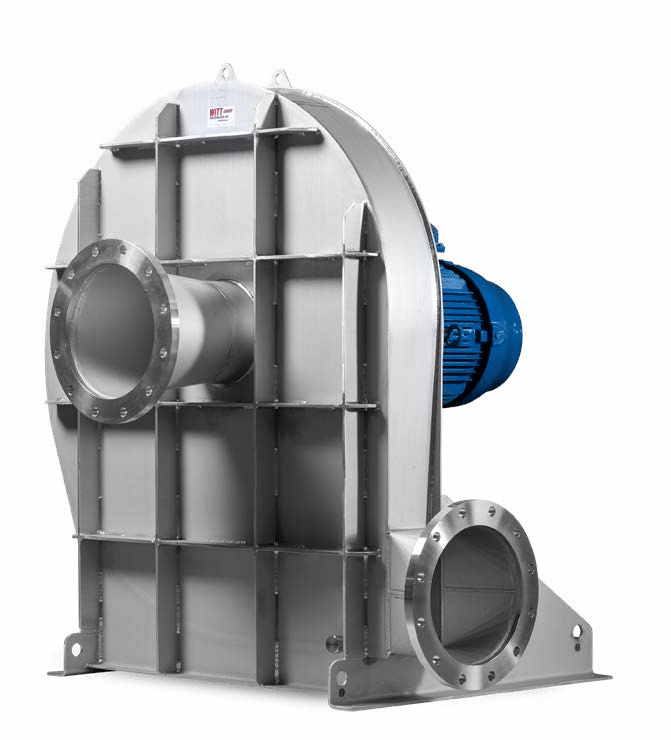

• Material: Impeller from aluminum. The housing in welded design is available in carbon steel and stainless steel.
• Inlet diameter from DN125 to DN400
• Outer diameter of the impeller from 600 mm to 1080 mm
• Motor size from 7.5 kW to 55 kW
• ATEX II2G or II3G (for zone 1 and 2)
• Gastight ISO EN 13349 cat. H1
• Standard colour RAL 7032 (others on request)

For more information, please visit our website or read our brochure.
