DosaPac Dosing System
Unparalleled dosing precision
Benefitting from the digital technology of the Grundfos DDA series of pumps, DosaPac™ offers an extremely accurate injection process, eliminating waste due to over-chlorination. The recyclable composite panel’s innovative design makes it corrosion resistant. Plus, DosaPac is fully programmed, assembled and tested in the plant.
Files
Description
DosaPac ’’Integrated chemical dosing system with extreme precision’’
GRUNDFOS DDA-FCM Digital Dosing Pump
• Digital dosing/step-by-step motor
• Piston stroke always operating at 100%
• 1:3000 pumping ratio
• Automatic deaeration
• Multilingual retro-light touch screen in 4 colours
• Actual flow rate and pressure measurement

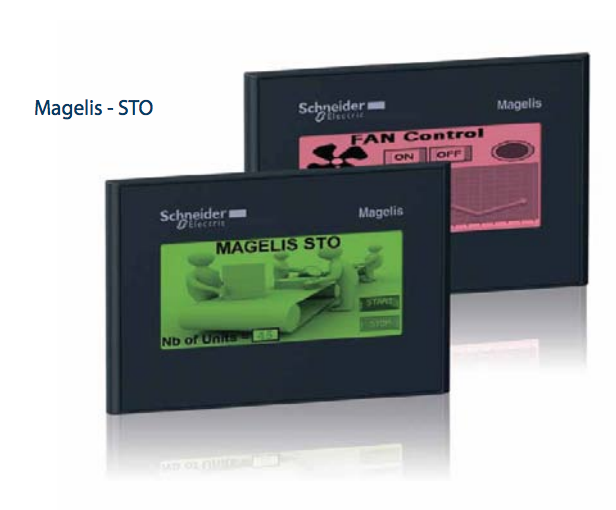

DOSAPAC PLUS Controller
• Multilingual monochromatic 3 colour touch screen 3.4 inch 200 x 800
• 333 MHz processor/16 MB memory
• PLC M168 Controller with RTC clock
• Automated pumps alternation
• Alarm management
• Full communication
CONTROLPAC
• Compact multifunction analyser
• Residual chlorine, pH analysis and temperature adjustment
• Turbidity analysis if required
• Digital and posted graphic values
• RS232, Modbus, Device Net, CANopen, and Ethernet communication
• PID integrated control loop

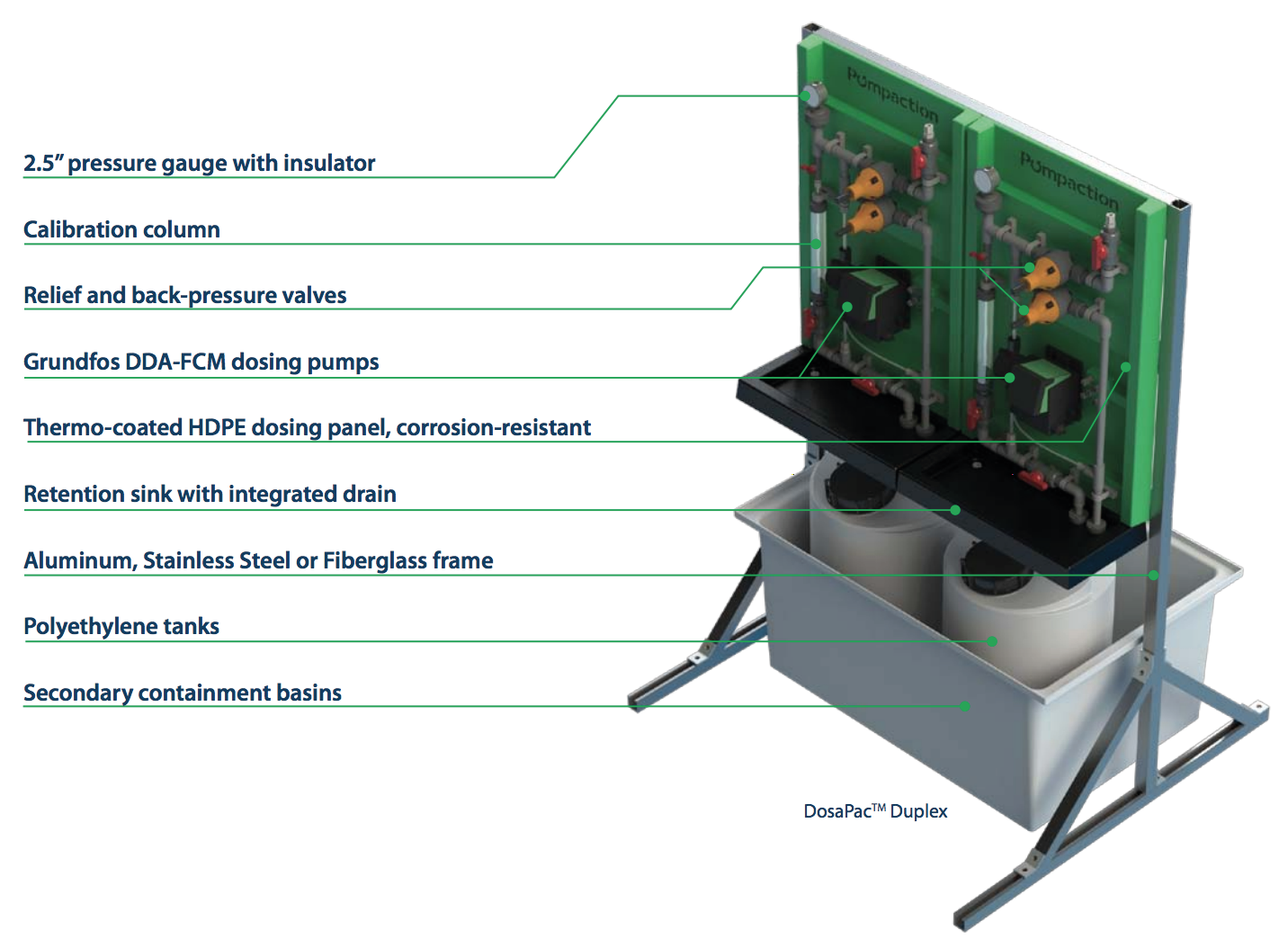

DUPLEX DOSAPAC System
For more information, please visit Pompaction’s website.
