Description

Regenerative VOC & Siloxane Removal Systems by ANKA

What is VOC?

Volatile Organic Compounds (VOC) are a class of organic chemicals characterized by their high vapor pressure at ambient conditions. They easily evaporate and are commonly found in waste, industrial processes, and biogas sources such as sewage, industrial waste, and food waste.

What is Siloxane?

Siloxane is a compound found in biogas originating from domestic solid waste, food waste, and wastewater treatment sludge. It is especially caused by wastes originating from cosmetics, food additives, and detergents.

Our Solution

As ANKA, we are proud to have managed to manufacture an industrially viable biogas Regenerative VOC & Siloxane removal system as a result of the R&D studies carried out with the support of the Ministry of Science, Industry, and Technology.

Thanks to its modularity, it can be easily scaled to any capacity with very low pressure loss, which is very important for long-term energy savings. The system consists of two filters containing the filter media used for VOC & Siloxane removal.

These filters work in sequence. When a filter reaches its full adsorption capacity, the system automatically activates the other tank, which is already regenerated and ready. Thus, the gas engines are continuously supplied with clean gas.

Regenerative VOC & Siloxane Removal System Specifications

Ability to work with PLC fully automatically without requiring operator intervention
Low maintenance cost
Compliance with ATEX and CE directives
Fail-safe system
Low-cost filter material
Regenerable filter media
Small footprint, compact design
Communication hardware that can be integrated into SCADA systems (Optional)
Remote monitoring and SMS sending feature (Optional)

Benefits of Regenerative VOC & Siloxane Removal System

As a result of installing a Regenerative VOC & Siloxane removal system in your plant, you get profits from many cost items. These are:

Labor costs during VOC & Siloxane-induced maintenance
Part replacement costs consisting of wear caused by VOC & Siloxane
Production losses in engine stops (downtime) during VOC & Siloxane-induced maintenance
Power losses due to working at partial load as a result of the knock caused by silicone deposits
Lower energy consumption in PSA units
Lower purification system operating costs: No efficiency loss, no membrane clogging
Avoided RNG compliance penalties: No grid rejection or downtime

Our Projects

Turkiye Seymen LFG to Electricity Plant

ANKA’s Regenerative VOC & Siloxane Removal System with a gas cleaning capacity of 20,000 Nm³/h was successfully commissioned for the Seymen Landfill Gas-to-Electricity Plant located in the Silivri district of Istanbul.

The facility converts landfill gas generated from municipal waste collected across the European side of Istanbul into renewable electricity. With an installed power capacity of 37 MW, the plant supplies electricity equivalent to the annual consumption of approximately 190,000 households, while significantly reducing greenhouse gas emissions. At full capacity, the facility is expected to reach 90 MW installed power, making it one of the largest single-site landfill gas-to-electricity plants in the world.

Capacity: 20,000 Nm³/h
Phase 1: 2020
Phase 2: 2022
Engine Brand: INNIO Jenbacher
End User: İstanbul Enerji A.Ş.

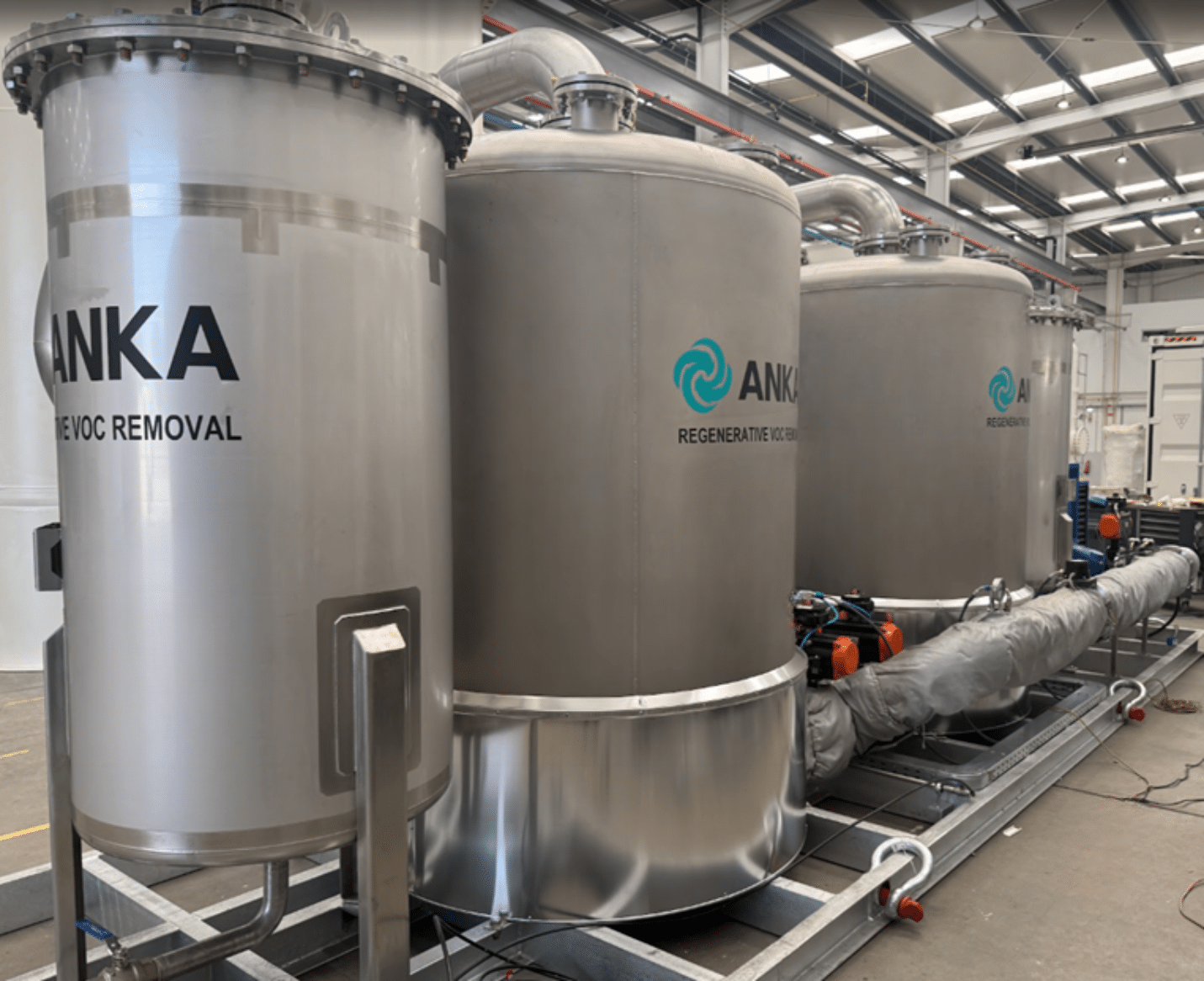

Brazil Minas Gerais RNG Plant

The Belo Horizonte Landfill Gas-to-RNG Facility, located in Minas Gerais, Brazil, operates with an RNG production capacity of 4.000 Nm3/h and represents ANKA’s first project in South America. The facility is equipped with ANKA’s Regenerative VOC Removal System, consisting of three parallel units (3 × 2,500 Nm³/h), providing a total LFG treatment capacity of 7,500 Nm³/h.

By integrating ANKA’s advanced purification technology, the plant achieves high gas quality, maximum operational stability, and superior protection for downstream components such as polishers and PSA upgrading units.

Treatment Capacity of LFG: 7,500 Nm³/h
Year: 2025
RNG production capacity of 4,000 Nm³/h
End User: Asja Brasil

Turkiye Mersin Regenerative VOC & Siloxane Removal System (6,750 Nm³/h)

ANKA’s Regenerative VOC and Siloxane Removal System was successfully installed and commissioned at Kalde Enerji’s Mersin facility.

Initially designed for a capacity of 4,500 Nm³/h, the system was later upgraded to 6,750 Nm³/h, enhancing gas purification performance and overall plant efficiency.

With this increased capacity, the system provides greater biogas processing capability, continuous downstream equipment protection under higher loads, and an RNG-ready infrastructure for long-term sustainability.

The project scope included engineering, manufacturing, installation, and automation, supporting Kalde Enerji’s 13.2 MW landfill gas-to-energy plant with scalable and reliable purification technology.

Capacity: 6,750 Nm³/h
Phase 1: 2024
Phase 2: 2025
Engine Brand: INNIO Jenbacher
End User: Kalde Enerji

Turkiye Sakarya LFG and Biogas to Electricity Plant

ANKA’s Regenerative Siloxane Removal System with a gas cleaning capacity of 5,000 Nm³/h was successfully commissioned for the Sakarya Integrated Solid Waste Management Facility located in the Erenler district of Sakarya.

The facility converts landfill gas and biogas generated from municipal waste into renewable electricity. With an installed power capacity of 14 MW, the plant processes approximately 700 tons of municipal waste per day and supplies electricity for around 130,000–140,000 people annually.

The project contributes to sustainable waste management while supporting reliable and efficient renewable energy generation in the region.

Capacity: 5,000 Nm³/h
Year: 2022
Engine Brand: CAT
End User: SEKAY

Turkiye Aydın LFG to Electricity Plant

ANKA’s Regenerative Siloxane Removal System with a gas cleaning capacity of 2,750 Nm³/h was successfully commissioned for the Aydın Landfill Gas-to-Energy Plant.

The facility generates renewable electricity using four Siemens/Guascor engines (1.2 MW each) and benefits from ANKA’s advanced purification technology, ensuring high-efficiency siloxane removal and long-term operational reliability.

The system offers robust protection for downstream equipment, eliminates breakthrough risks, and achieves the lowest OPEX in its class through fully automated operation.

Capacity: 2,750 Nm³/h
Year: 2025
Engine Brand: Siemens/Guascor
End User: EKO EN ENERJİ

Turkiye Silifke LFG to Electricity Plant

ANKA’s Regenerative Siloxane Removal System was successfully installed and commissioned at the Silifke facility operated by Kalde Enerji.

With a gas cleaning capacity of 2,500 Nm³/h, this system is an essential part of the 3.6 MW landfill gas-to-energy plant, ensuring long-term engine protection and continuous operation by removing siloxane and other harmful VOC components.

The project scope covered engineering, manufacturing, installation, and automation, providing a reliable and efficient purification process for renewable energy generation.

Capacity: 2,500 Nm³/h
Year: 2024
Engine Brand: INNIO Jenbacher and Siemens
End User: Kalde Enerji

Turkiye Manisa LFG to Electricity Plant

ANKA’s Regenerative Siloxane Removal System, with a gas cleaning capacity of 2,500 Nm³/h, was successfully commissioned for the Manisa Landfill Gas Power Generation Facility operated by Kartallar Ege Enerji.

In this facility, household waste collected from Manisa’s city center and districts is processed at the sanitary landfill. The produced landfill gas is transferred to gas engines and converted into electrical energy. The Integrated Solid Waste Management Facility has an installed capacity of 7 MW, contributing to sustainable energy generation and environmental protection.

Capacity: 2,500 Nm³/h
Year: 2022
Engine Brand: INNIO Jenbacher
End User: Kartallar Ege Enerji

Turkiye Kayseri LFG to Electricity Plant

ANKA’s Regenerative Siloxane Removal System, with a gas cleaning capacity of 2,500 Nm³/h, was successfully commissioned for the Seymen Landfill Gas Power Generation Facility of R Enerji in Kayseri.

The Integrated Solid Waste Management Facility has an installed capacity of 7 MW, converting landfill gas into renewable electricity. The project scope included engineering, manufacturing, assembly, automation, and commissioning, ensuring efficient and reliable gas purification for long-term operation.

Capacity: 2,500 Nm³/h
Year: 2022
Engine Brand: MWM
End User: R Enerji

Turkiye Kuşadası LFG to Electricity Plant

ANKA’s Regenerative Siloxane Removal System with a gas cleaning capacity of 2,000 Nm³/h was successfully commissioned at the Kuşadası Integrated Solid Waste Facility in Türkiye.

Designed for fully automatic operation, the system enables continuous purification without interruptions, ensuring long-term protection for downstream equipment.

This project represents another milestone in ANKA’s commitment to delivering cleaner gas, lower maintenance requirements, and higher energy efficiency for landfill gas-to-energy applications.

Capacity: 2,000 Nm³/h
Year: 2024
Engine Brand: INNIO Jenbacher
End User: EKO EN ENERJİ

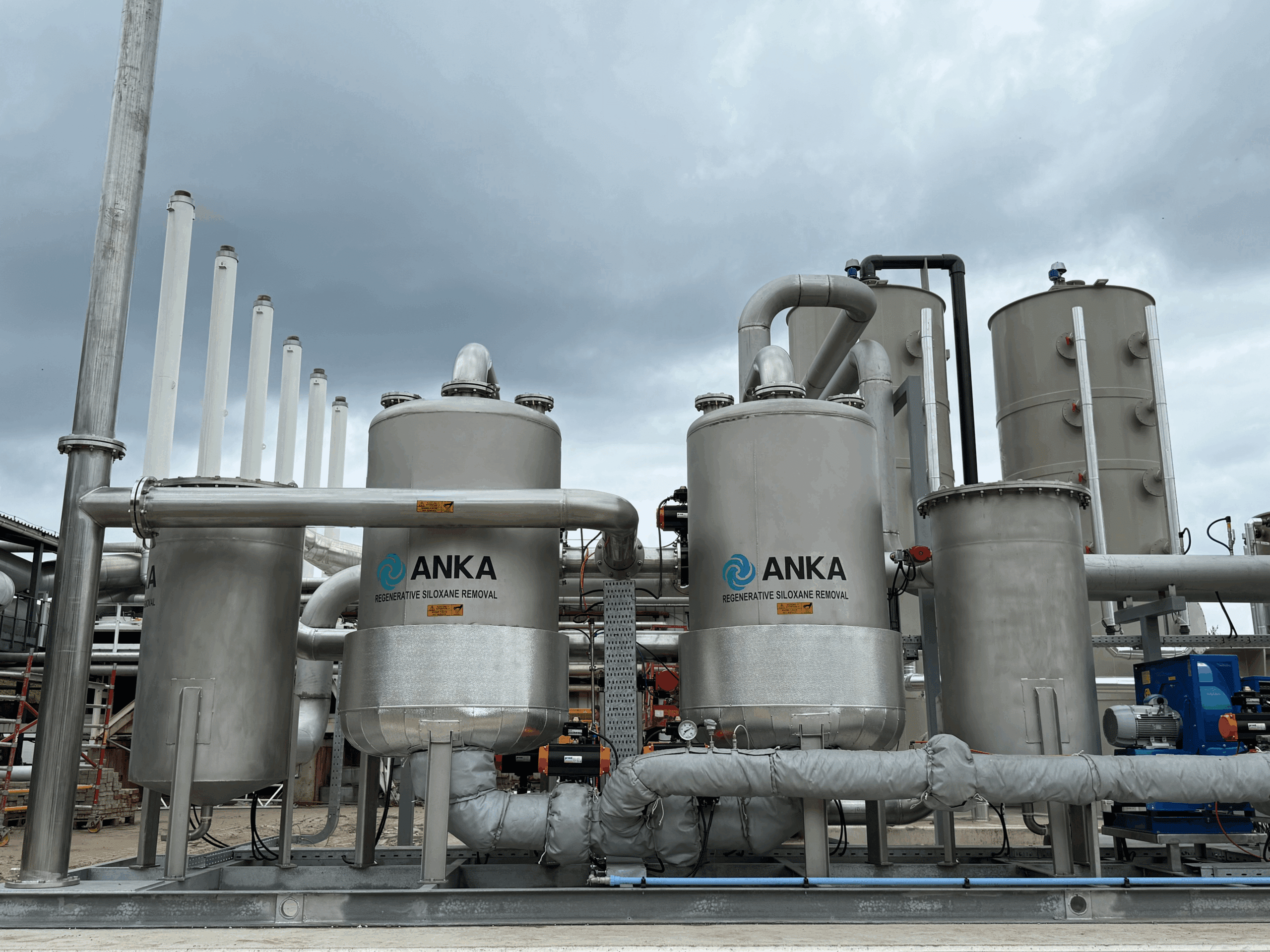

Latvia Riga LFG to Electricity Plant

The Riga Landfill Gas-to-Energy Facility in Latvia is equipped with ANKA’s Regenerative VOC and Siloxane Removal System, designed to treat 1,500 Nm³/h of landfill gas.

This project marks another milestone in ANKA’s international expansion and showcases how Regenerative VOC and Siloxane Removal Technology delivers high-efficiency purification for renewable energy applications.

The system provides long-term engine protection, increased efficiency in power generation, and offers a sustainable solution for landfill gas utilization, contributing to cleaner energy and a greener planet.

Capacity: 1,500 Nm³/h
Year: 2025
Engine Brand: INNIO Jenbacher
End User: UAB EKOTIKSLAI

VEOLIA Türkiye Çanakkale LFG to Electricity Plant

ANKA’s Regenerative Siloxane Removal System with a gas cleaning capacity of 1,400 Nm³/h was successfully commissioned for the Veolia Çanakkale Landfill Gas-to-Electricity Plant.

The facility converts the LFG from the wastes into electrical energy. The Integrated Solid Waste Plant holds a production license of 3.6 MW. The plant consists of four main components: gas collection, gas preparation, energy production, and electricity distribution, and meets the electricity needs of 30,000 people per year.

This project demonstrates ANKA’s capability to deliver reliable gas purification solutions for landfill gas-to-energy applications.

Capacity: 1,400 Nm³/h
Year: 2022
Engine Brand: MWM
End User: VEOLIA Turkiye

Turkiye Edirne LFG to Electricity Plant

ANKA’s Regenerative Siloxane Removal System, with a capacity of 1,400 Nm³/h, was successfully commissioned for the Edirne Landfill Gas Power Plant.

Located in Edirne, the Integrated Solid Waste Management Facility was established with an investment of TL 65 million and has an installed power generation capacity of 3.2 MW.

Approximately 250 tons of domestic solid waste are processed daily, supplying the annual electricity needs of nearly 30,000 households while contributing to sustainable waste management and greenhouse gas reduction.

Capacity: 1,400 Nm³/h
Year: 2020
Engine Brand: MWM
End User: Atlas

Turkiye Osmaniye LFG to Electricity Plant

ANKA’s Regenerative Siloxane Removal System, with a gas cleaning capacity of 1,400 Nm³/h, was successfully commissioned for the Osmaniye Landfill Gas Power Generation Plant, operated by Atlas.

In this facility, household waste collected from the city center and districts of Osmaniye is processed in sanitary landfills. The generated landfill gas is transferred through pipelines to the gas engines and converted into electrical energy. The Integrated Solid Waste Management Facility has an installed capacity of 3.12 MW, contributing to the city’s renewable energy supply and environmental sustainability.

Capacity: 1,400 Nm³/h
Year: 2022
Engine Brand: MWM
End User: Atlas

Turkiye Nevşehir LFG to Electricity Plant

ANKA’s Regenerative Siloxane Removal System, with a gas cleaning capacity of 900 Nm³/h, has been successfully commissioned at the Nevşehir Solid Waste Facility.

The facility processes approximately 250 tons of municipal solid waste per day, generating an average of 35 MWh of renewable electricity daily with a total installed capacity of 3.6 MW.

Tailored to the site’s specific gas conditions, ANKA’s system ensures stable operation and provides long-term protection for downstream equipment against siloxane buildup. This project demonstrates ANKA’s ability to deliver efficient, reliable, and scalable purification solutions for facilities of every size and capacity.

Capacity: 900 Nm³/h
Year: 2024
Engine Brand: MWM
End User: DUMANOGLU

Greece/Psyttalia Wastewater Treatment Plant

A Regenerative Siloxane Removal System with a capacity of 600 m³/h has been installed for the wastewater treatment plant of Ellaktor Group established on Psyttalia Island, located within the borders of Athens.

The system provides clean gas to operate Regenerative Thermal Oxidizer system in the plant.

Capacity: 600 Nm³/h
Year: 2022
Equipment: RTO (Regenerative Thermal Oxidizer)
End User: ELLAKTOR GROUP

Portugal Amadora Mota-Engil LFG to Electricity Plant (Ongoing Project)

ANKA’s Regenerative VOC and Siloxane Removal System, with a gas cleaning capacity of 1,000 Nm³/h, is currently ongoing. The facility processes approximately 250 tons of municipal solid waste per day.

Capacity: 1,000 Nm³/h
Year: 2026
Engine Brand: MWM
End User: VALORSUL

Portugal Seixal Mota-Engil LFG to Electricity Plant (Ongoing Project)

Capacity: 1,000 Nm³/h
Year: 2026
Engine Brand: MWM
End User: MOTA-ENGIL

Barcelona Hera Holding LFG to Electricity Plant (Ongoing Project)

ANKA’s Regenerative VOC and Siloxane Removal System, with a gas cleaning capacity of 1,500 Nm³/h, is currently ongoing. The facility processes approximately 300 tons of municipal solid waste per day.

Capacity: 1.500 Nm³/h
Year: 2026
Engine Brand: INNIO Jenbacher
End User: Hera Holding
